    8 Gauge 20mm Mesh 5.5mm Galvanised Chain Link Fencing

    Ask Lasest Price
    Brand Name : Jintong
    Model Number : ME-008
    Certification : ISO
    Price : $2.3-3.5square
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 30000 square
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    8 Gauge 20mm Mesh 5.5mm Galvanised Chain Link Fencing

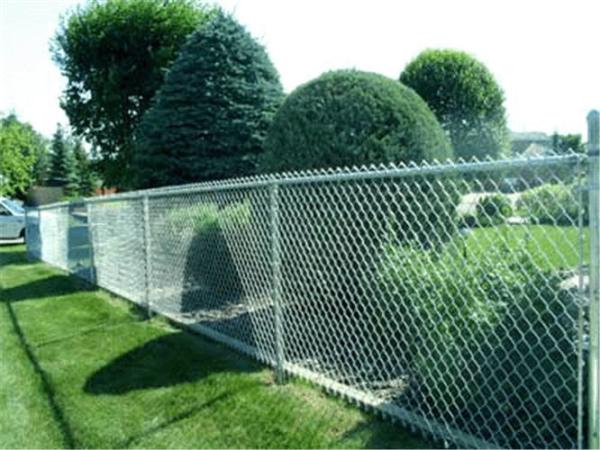

    Chain link Fence is made from galvanized or pvc coated iron wire, to fix with posts, brace and fittings to build a chain link fence system in the park, tennis court, airport and other places. Also can be used for animal breeding. It is mainly divided into galvanized, PVC, PE-coated three products with easy construction and maintenance, bright colors, which are the preferred products to beautify the urban environment.

    Chain Link Fence
    MaterialGalvanized iron wire or PVC coated iron wire
    Surface TreatmentPVC coated, PVC sprayed, electric galvanized, hot dipped galvanized
    Wire Thickness3.0-5.5mm
    Mesh Opening20x20mm,50x50mm,60x60mm,80x80mm,100x100mm etc
    Mesh Height0.5m-6m
    Mesh Length4m-50m
    Post & Rail Diameter60mm, 75mm, 80mm etc
    Post & Rail Thickness1.5mm,2.0mm,3.0mm,4.0mm,5.0mm etc


    It is also suitable for houses and properties, companies, recreation areas, garden parks.
    It's popular in Asia, America and Africa market, etc.
    All kinds of colors can be coated according to customers' requirements.

    Features: the weaving is simple,artistic,strong,durable,practical,easy to install and maintenance.

    8 Gauge 20mm Mesh 5.5mm Galvanised Chain Link Fencing


    Applications


    Chain link fence application

    Commercial grounds (Corporation, hotel, supermarket)

    Private grounds (Courtyard, Villadom)

    Public grounds (Park, zoo, train or bus station, lawn);

    Road and transit (Highway, railway or road city transit);

    chain link fence is used as fencing, decoration or protection for various facilities in industry,agriculture, infrastructure, transport, etc.



    Installation

    The installation of chain-link fence involves setting posts into the ground and attaching the fence to them. The posts may be steel tubing, timber or concrete and may be driven into the ground or set in concrete. End, corner or gate posts, commonly referred to as "terminal posts", must be set in concrete footing or otherwise anchored to prevent leaning under the tension of a stretched fence. Posts set between the terminal posts are called "line posts" and are set at intervals not to exceed 10 feet. The installer attaches the fence at one end, stretches it, and attaches at the other, easily removing the excess by "unscrewing" a wire. Finally, the installer ties the fence to the line posts with aluminum wire. In many cases, the installer stretches a bottom tension wire, sometimes referred to as "coil wire", between terminal posts to help minimize the in and out movement that occurs at the bottom of the chain-link mesh between posts. Top horizontal rails are used on most chain-link fences, although not necessary. Bottom rails may be added in lieu of bottom tension wires, and for taller fences, 10 feet or more, intermediate horizontal rails are often added.

    Manufacturing process of the chain link fence


    we have weave machines of chain link fence,and our fence mesh have weaved by the machines.


    please check the machines bellow.Our chain link fence machine can finish 30 tons in 10 days,


    if order more, we will use more machines to you,make sure delivery the goods in time.




    WHY SHOULD YOU CHOOSE US?

    1.We are professional in the manufactureing chain Link fence

    2.We have good experience for exporting

    3.We can offer you competitive price with lowest cost but good quality

    4. Long term business is our first choice, Quality is our first target.
