Jintong Hot Sale Pegboard Panel for Acoustic Construction

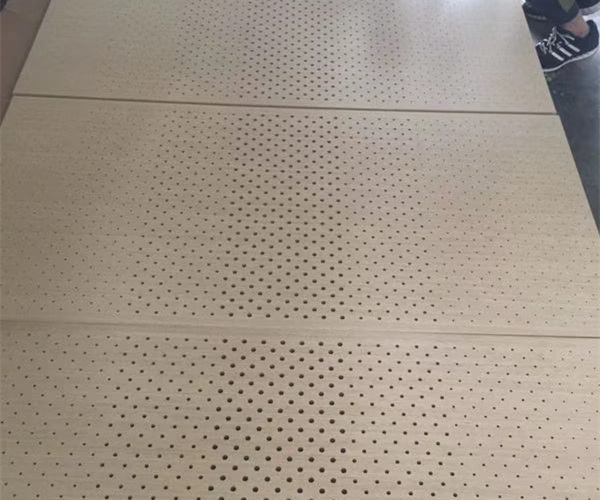

Pegboard Panel is hardboard which is pre-drilled with evenly spaced holes. The
holes are used to accept pegs or hooks to
support various items, such as tools in a workshop. Typical
dimensions and layout for 1/4" thickness is 1/4" holes with 1" O.C.
spacing. You will need to allow sufficient space behind the
pegboard if you are installing on a wall and plan to use the
pegboard
hooks.
Hardboard is produced by converting wood into fibers (defibering)
and then reconstructing the fibers into panels.
Hardboard is a composite panel manufactured primarily from
inter-felted ligno-cellulosic fibers consolidated under heat and
pressure in a hot-press to density of 31 pounds per cubic foot or
greater. Other materials may be added during the manufacturing
process to improve certain properties, such as resistance to
abrasion and moisture, and increased strength and durability.
Hardboard is used in a variety of applications including furniture
components, wall paneling, exterior siding and trim,
underlayment, interior trim, perforated and utility boards.
Product Paramenters
Material | HDF/MDF/ Hardboard |
| Size | 1200*2400mm or customized |
| Thickness | 3-30mm |
| Hole Distance | >=3mm |
| Hole Diameter | 4mm~20mm |
| Color | White, Black, Browm, etc/ soild color/ wood grain color |
| Surface | Melamine paper/ painting/PVC/ UV /PU Paper |
| Grade | E0, E1, E2 |
| Delivery Time | 15 days |
| Usage | To accept pegs or hooks to support various items |
Single Sided E0 MR MDF
Single Sided E0 MR MDF is a highly moisture resistant MDF, sanded
smooth on one side and bonded on the other side with a hard wearing
white melamine surface.
Single Sided E0 MR MDF is manufactured for the membrane pressing
and painted panel market. To cater for the unique requirements of
various vinyl membrane pressing and paint application techniques,
there are two Single Sided E0 MR MDF
board substrates available to choose from:
• Single Sided E0 MR MDF (735kg/m3 ), and
• High Density Single Sided MDF (770kg/m3)
Single Sided E0 MR MDF is a wood based panel and reacts to changes
in moisture like natural timber, ie. high or low humidity may cause
some expansion or contraction without any degradation to the
strength of the board.
Single Sided E0 MR MDF is recommended for interior use only.
Applications
Single Sided E0 MR MDF can be overlaid with vinyl, timber veneer or
a paint system. It is used to make cupboard doors, cupboardend
panels and other applications where panels are required to be
decorated on one side.
Single Sided E0 MR MDF panels are manufactured with a specific
pre-stressed bow to cater for correction factors that arisein the
application of different decorative surfaces to the non-laminated
face.
As the substrate is a wood based panel, it will react to changes in
moisture as per natural timber, and hence humidity variations will
affect the level of the bow. Exposure to moisture and/or heat
(>100ºC for extended periods >1 min) may cause surface and
edge disturbance.
Substrate and pre-stressed bow options.
Many factors will contribute to the overall stress applied to the
non-laminated panel face and hence the resultant panel flatness.
Theseinclude the decorative surface applied and the amount of face
routing or modification to the non-laminated face. There are two
Single Sided MDF board substrates available and each has different
pre-stressed values to accommodate the various manufacturing
factors.
Therefore, Laminex strongly recommends that trial panels be
manufactured and subjected to the proposed environment before
full-scale processing commences. Due to high risk of visual defect
from minor surface distrubances the product used for high gloss
applications should be prepared suitably.
Conventional painting of MDF Raw
Surface preparationStop all nail holes and imperfections with a suitable timber filler
and acrylic blade filler and allow to dry. Lightly sand all
surfaces to
be coated so as to obtain a smooth and even finish. Dust off all
sanded surfaces using a damp rag before painting commences.
Undercoat
For conventional painting, the recommended type of undercoat or
primer is a water based acrylic type. Apply the coating in
accordance with the manufacturer’s instructions. When dry, all
painted surfaces should be sanded smooth. It is recommended that
acrylic undercoats should not be watered down prior to use.
Topcoat
Ideally, an acrylic coating is selected as the top coat. However,
as some formulations in this generic type can be found to be
unsuitable in certain applications, as in the case of doors and
architraves of high wear areas, an oil or alkyd base type may be
more suitable.
Application of topcoat
To achieve the best appearance in finish, spray application is
recommended to be carried out in as dust free circumstances as
possible. Conventional brush and roller applications can also give
a satisfactory result.
